Rotary Drum Filter for Industrial & Municipal Wastewater Treatment

Rotary Drum Filter is an efficient mechanical screening system designed for continuous solid-liquid separation in wastewater treatment applications. It removes suspended solids, fibers, plastics, food residues, and other debris before biological treatment. It helping reduce COD, BOD, and TSS while protecting downstream equipment.

As a professional Rotary Drum Filter manufacturer, we provide customized screening solutions for municipal wastewater plants and industrial wastewater treatment projects worldwide. Our equipment features high filtration efficiency, low energy consumption, automatic cleaning, and long service life.

Whether you are designing a new wastewater treatment plant or upgrading an existing system, our Rotary Drum Filter provides reliable pretreatment performance for a wide range of industries.

Why Choose Our Rotary Drum Filter?

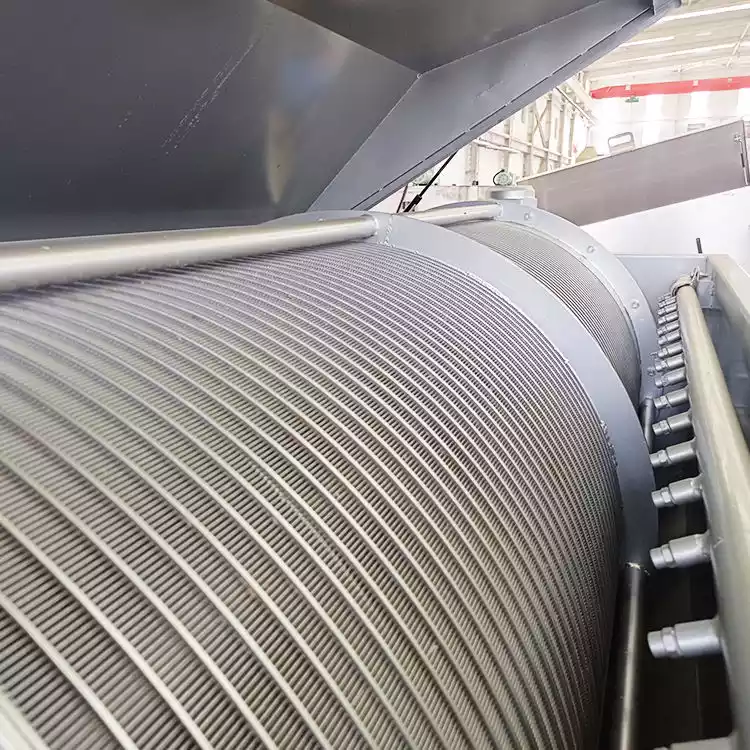

• High Screening Efficiency: The wedge wire or perforated drum provides precise filtration with opening sizes ranging from 0.25 mm to 5 mm, ensuring excellent removal of suspended solids.

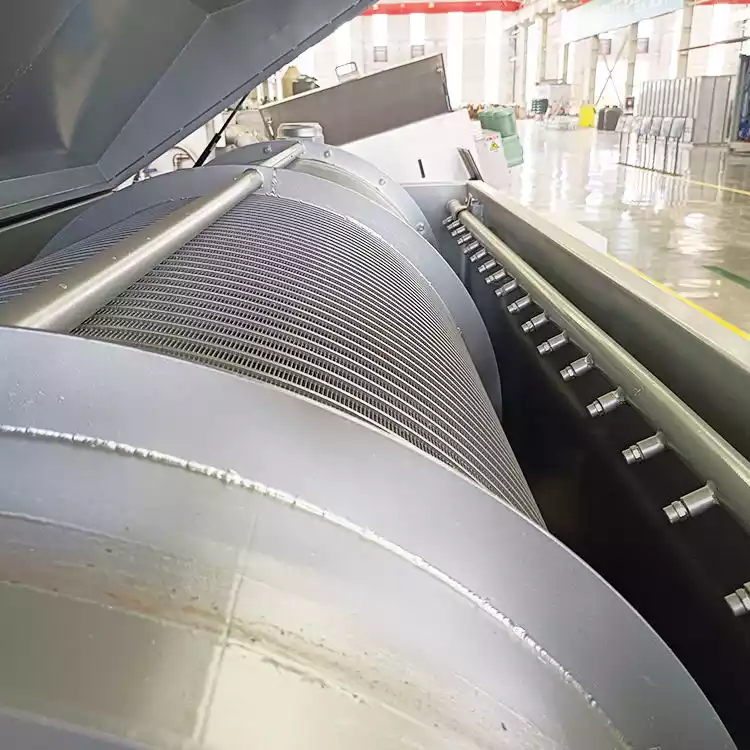

• Automatic Self-Cleaning: Integrated spray nozzles continuously clean the filter surface, preventing clogging and minimizing maintenance requirements.
• Low Energy Consumption: Driven by a high-efficiency geared motor, the drum rotates only when necessary, significantly reducing operational costs.
• Continuous Operation: Designed for 24/7 operation with stable performance and minimal operator intervention.
• Compact Design: The equipment requires limited installation space and can be easily integrated into existing wastewater treatment systems.
• Corrosion Resistant: Manufactured from SS304 or SS316 stainless steel, ensuring excellent resistance to corrosion and long service life even under harsh wastewater conditions.
• Customizable Design: Available in multiple capacities, drum diameters, screen sizes, and installation configurations to meet project-specific requirements.

Technical Specifications

Item	Specification
Drum & Frame Material	Stainless Steel 304 or 316. The use of SS304 or SS316 for all wetted parts and support structure ensures high corrosion resistance and long-term durability in harsh wastewater environments.
Capacity	200 m³/h, adjust based on your requirement.
Screen Opening	0.25–5 mm
Motor Power	Customized
Cleaning System	Automatic Spray Cleaning
Installation	Channel Type / Tank Mounted
Control	Manual or PLC Automatic
Protection Grade	IP55 / IP65
Voltage	110V / 220V / 380V / 415V / Customized
Warranty	More Than 5 Years

Applications of Rotary Drum Filter

Our Rotary Drum Filters are widely used in various wastewater treatment industries:

• Food Processing Industry: Remove food particles, fibers, grease, and organic solids before biological treatment.
• Beverage Industry: Separate fruit residues, pulp, labels, and suspended solids.
• Slaughterhouse: Efficiently remove hair, bones, meat particles, and organic waste.
• Textile Industry: Capture fibers, lint, and suspended solids.
• Paper & Pulp Mills:Recover fibers while reducing wastewater loading.
• Municipal: Primary screening of influent sewage to protect pumps and downstream equipment.
• Aquaculture: Separate fish waste and suspended solids while improving water quality.
• Chemical Industry: Pretreatment for industrial process wastewater.

Advantages of Rotary Drum Filter

• High solid-liquid separation efficiency
• Continuous automatic operation
• Reduced labor costs
• Low maintenance
• Small footprint
• Long equipment lifespan
• Stable filtration performance
• Customizable filtration accuracy
• Easy installation
• Suitable for high-flow wastewater treatment

Benefits for Wastewater Treatment Plants

Installing a Rotary Drum Filter can significantly improve overall treatment performance by:

• Reducing Total Suspended Solids (TSS)
• Lowering COD and BOD loading
• Protecting pumps and downstream equipment
• Extending membrane lifespan
• Improving biological treatment efficiency
• Reducing sludge production
• Lowering maintenance costs
• Increasing plant reliability

Industries We Serve

• Municipal Wastewater
• Food & Beverage
• Dairy Processing
• Brewery
• Seafood Processing
• Poultry Processing
• Slaughterhouse
• Textile Manufacturing
• Paper Mills
• Chemical Plants
• Pharmaceutical Industry
• Agriculture
• Aquaculture
• Recycling Facilities
• Landfill Leachate Treatment

FAQ

Q: What is a Rotary Drum Filter?

A: A Rotary Drum Filter is an automatic mechanical screening device used to remove suspended solids from wastewater before biological or advanced treatment processes.

Q: What screen size is available?

A: Typical screen openings range from 0.25 mm to 5 mm, depending on the application and wastewater characteristics.

Q: Is the Rotary Drum Filter suitable for industrial wastewater?

A: Yes. It is widely used in food processing, textile, paper, slaughterhouse, municipal wastewater, and many other industrial applications.

Q: Does the equipment require manual cleaning?

A: No. The system includes an automatic high-pressure spray cleaning system that continuously cleans the drum during operation.

Q: Can you customize the equipment?

A: Absolutely. We manufacture customized Rotary Drum Filters according to:

• Flow rate
• Screen opening
• Installation dimensions
• Material requirements
• Voltage
• PLC control system
• Local standards
